Automated Photography Solutions

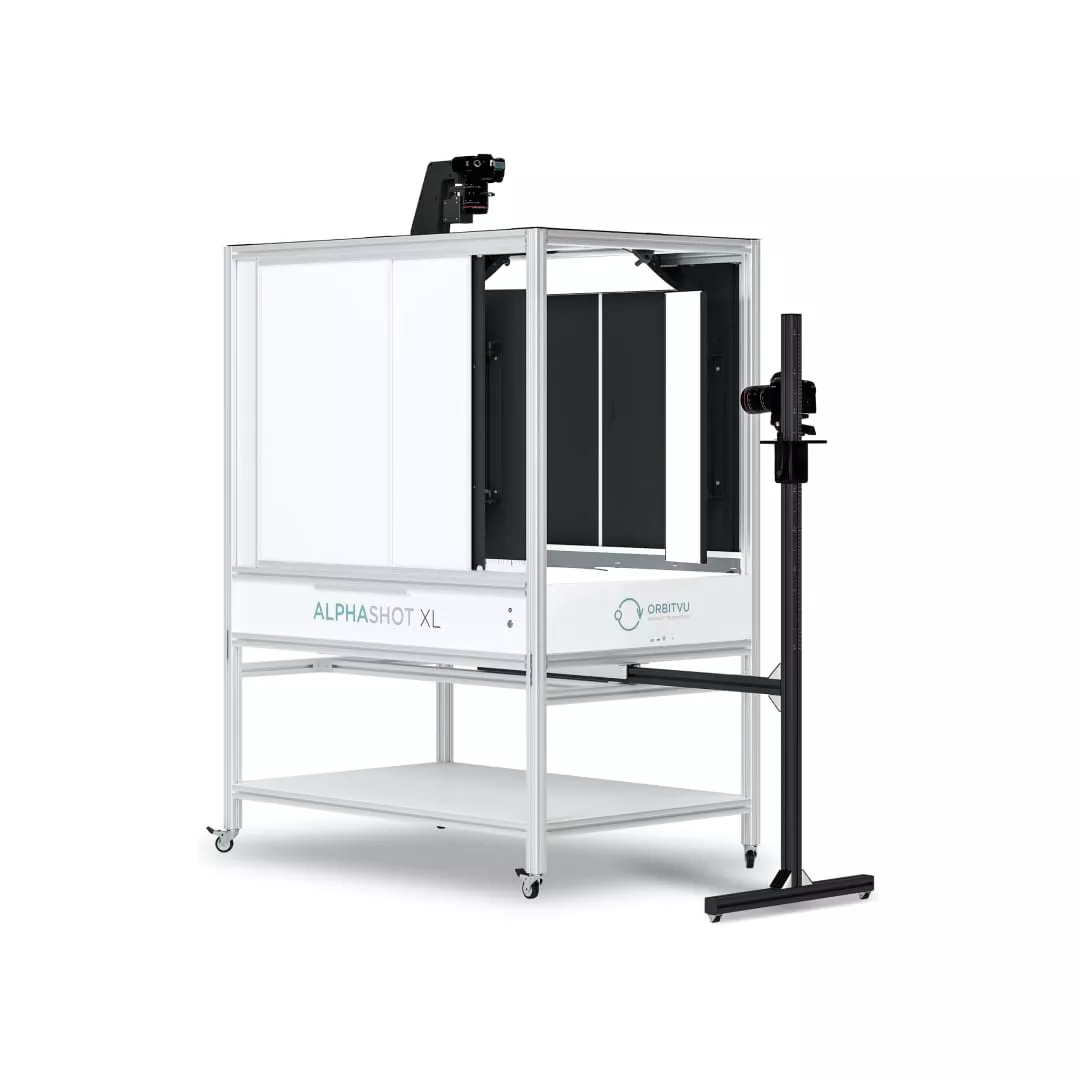

ALPHASHOT XL LED is an all-in-one compact photographic solution designed for e-commerce photography. It makes it easy for non-professionals to create consistent, ready-to-be-used
product images in ultra fast and efficient way.

Max object dimension:
 70x50x30 cm [HxWxD]
Max object weight: 25 kg
Use: 2D & 360° Compact and automated solution for product photography of medium sized object up to 70x50x30(HxWxD) size

  • Return on investment even
    after 1 photo session
  • 1 packshot without background
    in 5 seconds

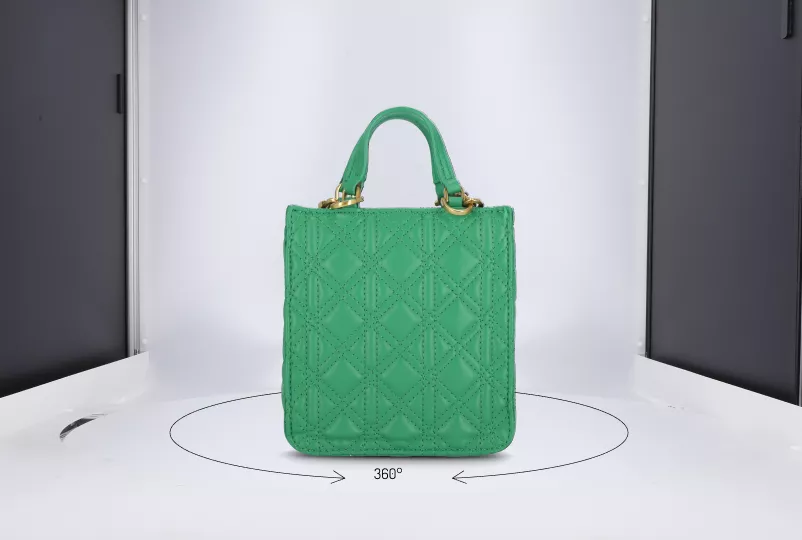

  • 360° product presentation
    in 2,5 minutes

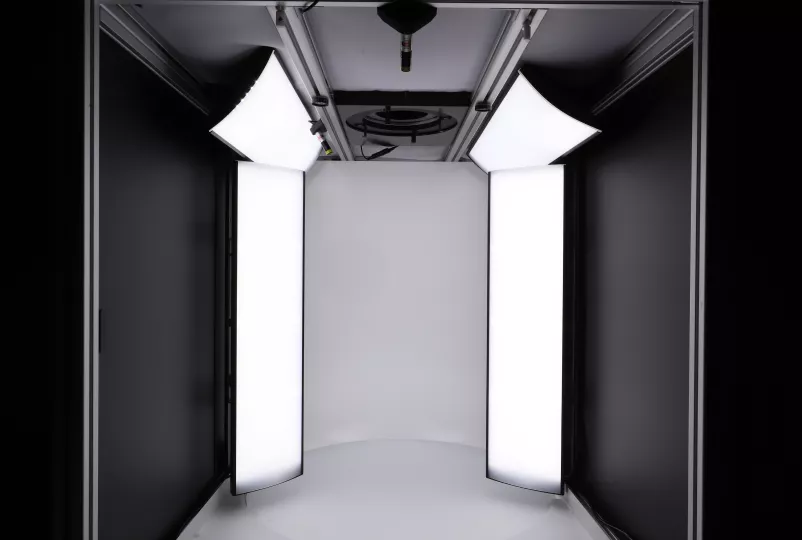

  • High end LED lighting

    Ultra flat, long, LED panels for more shooting space. 1920 light points of powerful, ultra high CRI (92+) LEDs with stabilized light intensity.


    Easy to use and advanced. The best software in the world for mass or image creation. Other photo editing software will be unnecessary.


    ORBITVU technology uses the full power of modern CPUs, as it engages each and every core. Consequently, several tasks can be performed at the same time in the background -- while the work pace is simply incomparable to anything else (even for very high-resolution images).

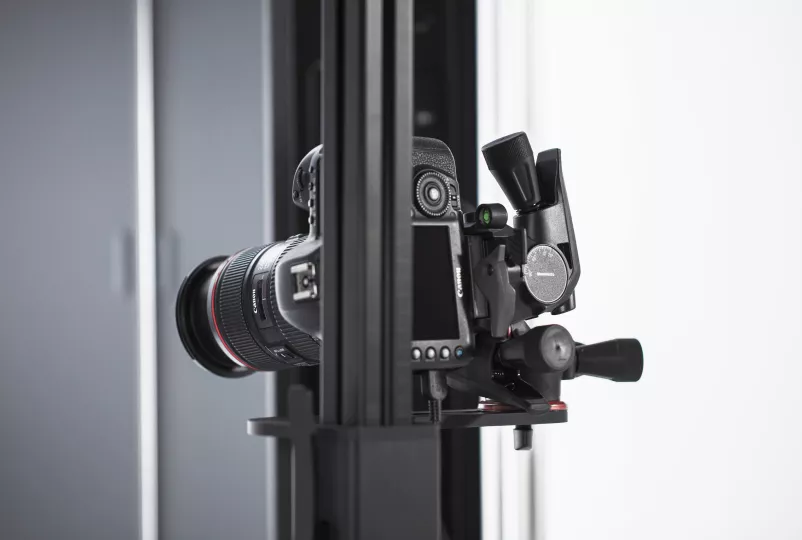

  • Camera support

    Equipped with Manfrotto head allows vertical and horizontal shots. With rulers on all movement axes, camera position can be easily repeated.


    Your computer is your command center. Through intuitive and easy-to-use interface, you can see exactly what the camera sees, and control everything -- even the advanced settings of the camera.


    Do you want to repeat the same shot? The reference image will be placed on a Live View product, which is exactly what you want to photograph. This allows for the placement of the product in the same position and cropping becomes exceptionally easy.


    A graphic artist removes the background from a photo in 10 minutes (not counting the time of its execution). ORBITVU removes the background in just 3 seconds. Without human intervention, without additional steps. Background of the products is removed already during the shooting.


    With Auto Cropping, the software detects automatically the size of the subject, composes the shot: adds margins, scales and positions it. As a result, you consistent images across the whole web site.


    Without the photographic knowledge and skills, you will be able to create professional photographs and presentations. We have developed templates for your light settings and advanced camera settings which work best for photographing different categories of objects. Would you like to create and save all on your own? All this to accelerate your speed to the max while making your work easy.

  • M-VIEW

    Thanks to the Multi-View, the method and display technology automatically adjust to the device bearing no effect on the time you open the presentation. The ORBITVU solution uses both technology like HTML5 and Flash.

  • E-commerce ready

    ALPHASHOT is equipped with plugins for the most popular e-commerce platforms. All images can be automatically uploaded and linked with product page with a touch of a button.


    Fine-tune the way you operate your device to your expectations. If you want to you can choose the angles, which always takes packshots of your products or adjust the rotation of the table so as to prevent taller products from toppling or swaying.


    Now you can make presentations and packshots without any restrictions on resolution. ORBITVU Software copes with any amount of data -- the only limit is the maximum resolution of the camera.


    Control technology of the product view using the whole hand through intuitive gestures. You will be impressed by the quality and depth of experience of the product as well as having full control over the image. Check and follow your own reactions.

  • 360°
  • Packshots
  • Orbittour
  • Video
The most photographed objects:
Household goods
Automotive parts
Works of art

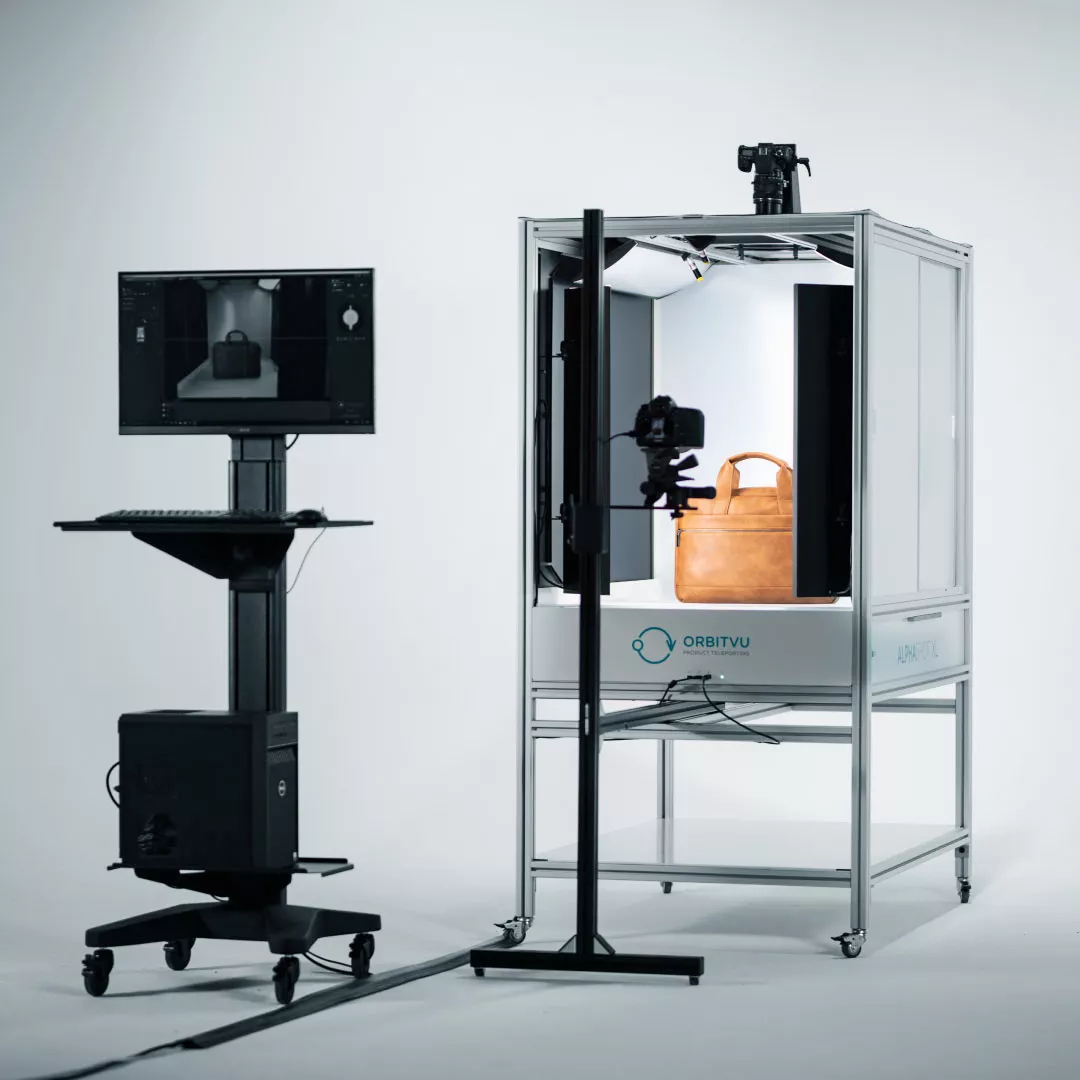

Specification ALPHASHOT XL LED
Max. size of photographed object [WxHxD] 50 x 70 x 30 cm (20" x 28" x 12")
Max. load 25 kg (55lb)
Front lights 2 panels x 480 pcs. 92+ CRI LEDs each, fixed
Top lights 2 panels x 480 pcs. 92+ CRI LEDs each, fixed
Bottom/back light 1600 pcs. 92+ CRI LEDs
Laser pointer Option (2 linear lasers, 15 mW each Class 2M)
Camera connection USB Type A
PC connection USB Type B
Output still image format Png, jpeg, RAW (as shot by camera) + png mask
360° image output formats HTML5, Flash, animated GIF
Output video file format AVI, MP4, direct upload to YouTube
Export Simple user defined mode; advanced xml file defined
Factory defined templates 5 generic profiles (color, bright, dark, transparent, glossy)

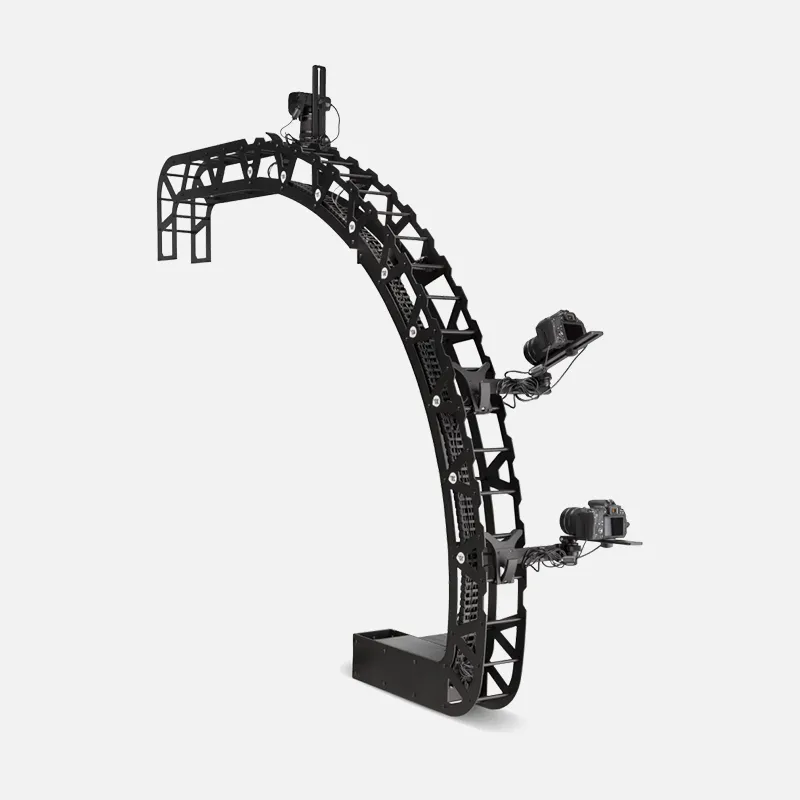

Multiple cameras control YES, up to 5 cameras (Canon only)
SUN hosting package Included: PRO plan - 500 products, 1 year
Dimensions [WxHxD] 230cm to 140cm x 130cm x 87 (90" to 55" x 51" x 34" )
Total weight 145 kg
External power supply 110-230V AC 1000W


    • Manual hanging kit (optional)

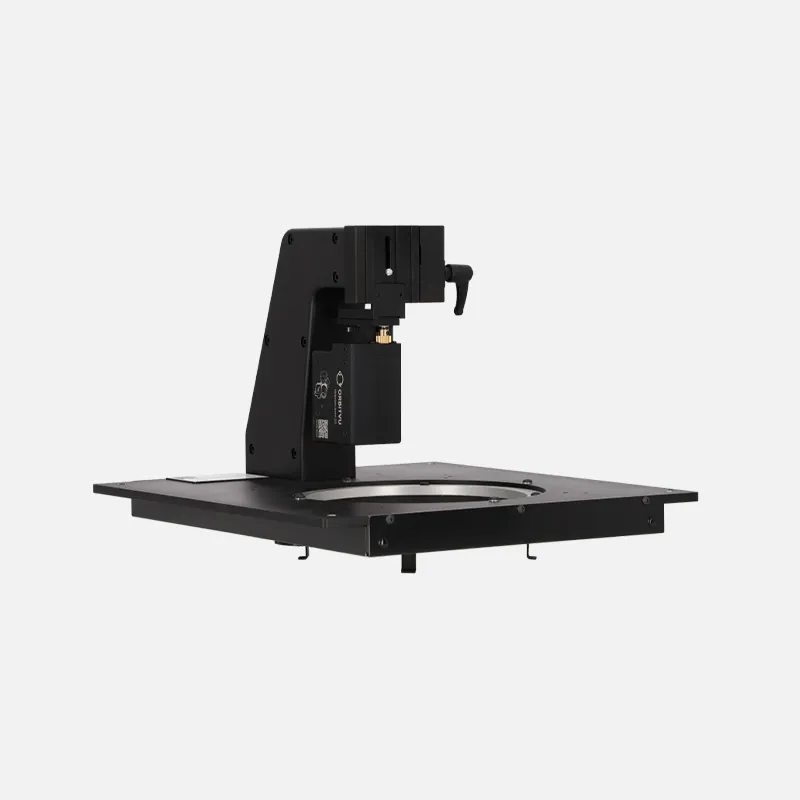

      • Top camera holder (optional)
        • Motorised hanging kit
          • 2 laser pointers (optional)
            • 50cm base with a shelf (optional)
              • Anti-reflective kit (optional)
                • Bottle support (optional)
                • Opinions

                  • We decided to choose ALPHASHOT and ALPHASHOT XL because both devices met our requirements. Modern solutions, such a automatic background removal - has become our work more efficient and less time consuming. ORBITVU software is easy to use, but yet so powerful that you do not need additional software for image processing. The advantage of the product is to control the lighting and the camera using software. Small size of devices make it possible to take pictures in a small spaces. Michał Tolczyk, R&D INTER CARS S.A.
                  • AlphaShot has changed our previous style of work with the products. It helps us to integrate a variety of product communication channels, as well as in visual content standardization of so many products that are in our offer. Work with AlphaShota is simple and automatic cutting backgrounds significantly accelerated the work. Ewelina Kotlińska, ROSSMANN
                  Go to Case Studies
